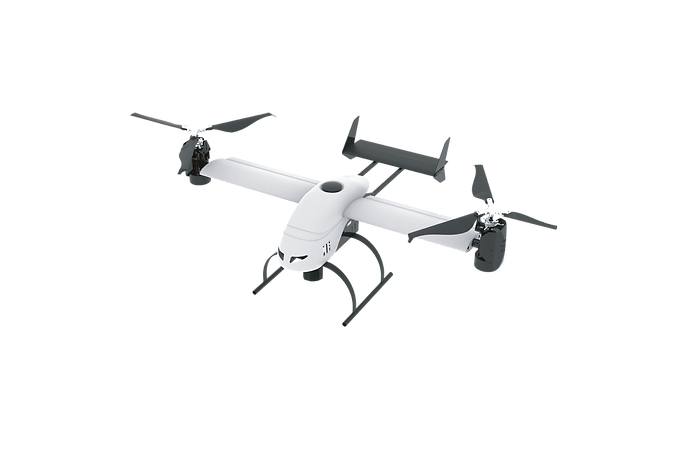

AF100 series_top
DRONE TYPE
DIMENSIONS
PROPULSION
DRONE BATTERY
AVIONICS
CONNECTIVITY
PAYLOAD
SPECIFICATION
Electric dual tilt-rotor (VTOL)
W1,000 X L860 X H300 mm
2x rotors during operation
1x Li-po battery (16,000 mAh)
1x GNSS system     1x with batteries     2x magnetometer
1x Cellular data link (4G or 5G)     1x Data link and video link (5.8Ghz)
CLLBC (Gamma and Neutron Detector)
Gamma & Neutron Detection Module
30 KeV ~ 3 MeV, < 4% resolution, 16-bit MCA (1024 ch),
dose up to 10 mSv/h
(subject to change upon customer request)
